Description
| Category | Specifications |
|---|---|

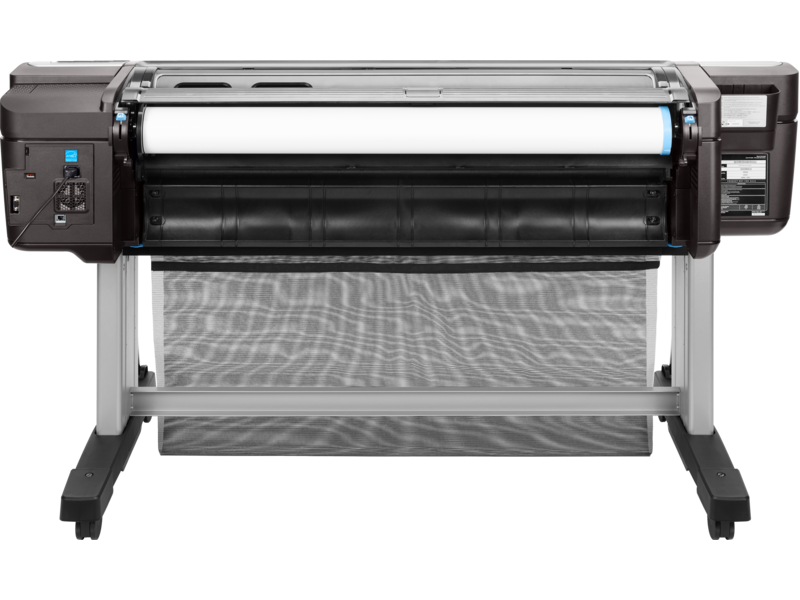

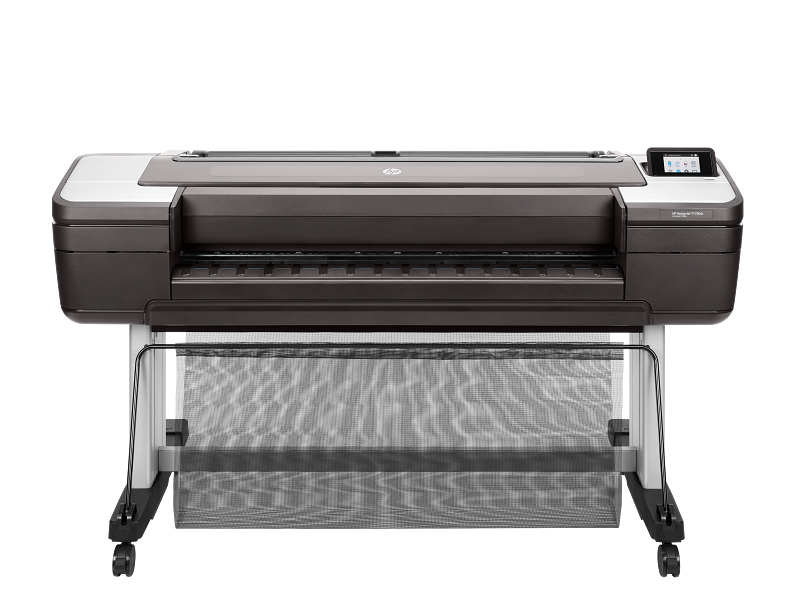

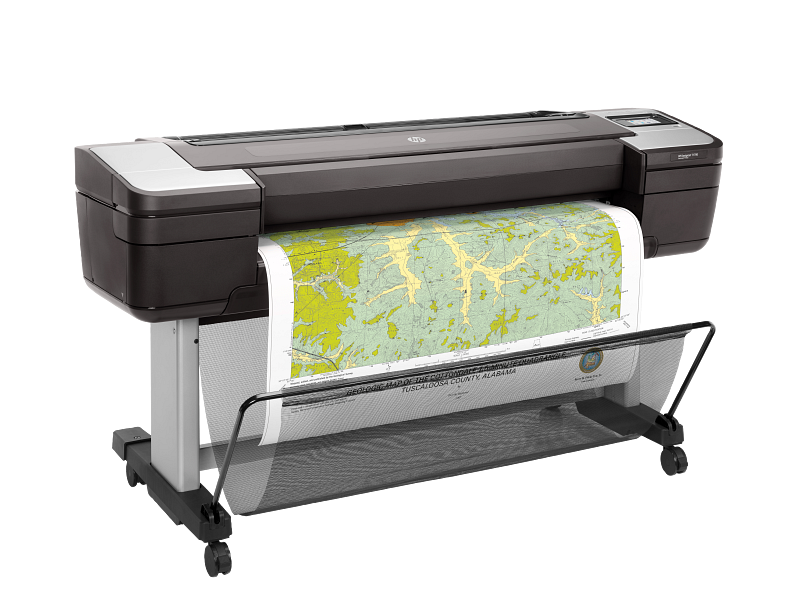

| Product | HP DesignJet T1700 44-in PostScript Printer |
| Functions | |
| Print Speed | 116 A1/hr, 26 sec/A1 |
| Ink Drop | 6 pl |
| Print Head Nozzles | 2112 each colour |
| Print Cartridge/Bottle Volume | Cyan, magenta, yellow, photo black, matte black, grey (300 ml); Cyan, magenta, yellow, photo black, matte black, grey (130 ml) |
| Ink Types | Dye-based (C, M, Y, PK, G); pigment-based (MK) |
| Print Cartridges/Bottle, Number | 6 (cyan, magenta, yellow, photo black, matte black, grey) |
| Print Heads | 3 universal printheads, 2 colours each |
| Print Cartridge/Bottle, Color(s) | Cyan, magenta, yellow, photo black, matte black, grey |
| Print Quality Color (Best) | Up to 2400 x 1200 optimised dpi |
| Maximum Optical Density (Black) | 2.15 maximum black optical density (6 L*min) |
| Finished Output Handling | Sheet feed, roll feed, automatic horizontal cutter |
| Media Sizes Standard (Metric Rolls) | 279 to 1118 mm |
| Roll External Diameter | 135 mm |
| Roll Maximum Input | 1 |
| Roll Maximum Weight | 11.9 kg |
| Recommended Media | C6810A HP Bright White Inkjet Paper (FSC® certified) 914 mm x 91.4 m (36 in x 300 ft)
C6569C HP Heavyweight Coated Paper 1067 mm x 30.5 m (42 in x 100 ft) Q6581A HP Universal Instant-dry Satin Photo Paper (FSC® certified) 1067 mm x 30.5 m (42 in x 100 ft) Q1406B HP Universal Coated Paper (FSC® certified) 1067 mm x 45.7 m (42 in x 150 ft) |
| Media Thickness | Up to 31.5 mil |
| Media Thickness Maximum (Metric) | Up to 0.8 mm |
| Media Width, Maximum | 1118 mm |
| Supported Primary Applications | Line drawings; Maps; Orthophotos; Presentations; Renderings |
| Non-Printable Area (Cut-Sheet) | 3 x 17 x 3 x 3 mm |
| Non-Printable Area (Roll Media) | 3 x 3 x 3 x 3 mm |
| Media Sizes, Custom | 210 x 279 to 1118 x 1676 mm |
| Media Sizes Supported | A4, A3, A2, A1, A0 |
| Media Types | Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl) |
| Media Weight, Recommended | 60 to 328 g/m² |
| Model Size | 1118 mm |
| Internal Storage | 500 GB self-encrypting |
| Line Accuracy | ±0.1% |
| Printer Drivers Included | Raster drivers for Windows and macOS; PostScript and PDF Windows drivers and macOS PostScript driver |
| Print Languages | Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4 |
| Print Technology | HP Thermal Inkjet |
| Theoretical Minimum Line Width | 0.02 mm (PDF addressable @ 1200 dpi) |
| Printing Path | Direct printing from USB flash drive, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint for macOS and iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android, HP Click Driver for Windows 11 |
| Connectivity, Standard | Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port |
| Connectivity, Optional | HP USB 3.0 to Gigabit LAN Adapter |
| HP ePrint Capability | Yes |
| Network Ready | Standard |
| Security Features | HP Wolf Pro Security, HP Secure Boot, Allowlisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, PIN printing |
| Mobile Printing Capability | Direct print for mobile apps for iOS, Android and Chrome OS; E-mail printing with HP ePrint and HP Smart app for iOS and Android |
| Dimensions (W x D x H) | 1802 x 695 x 998 mm |
| Package Dimensions (W x D x H) | 1955 x 770 x 710 mm |
| Weight | 88.9 kg |
| Package Weight | 126 kg |
| Memory | 128 GB (virtual) |
| Acoustic Power Emissions | 6.1 B(A) (operating), 5.0 B(A) (idle), <3.1 B(A) (sleep) |
| Acoustic Pressure Emissions | 45 dB(A) (operating), 32 dB(A) (idle), <15 dB(A) (sleep) |
| Operating Humidity Range | 20 to 80% RH |
| Non-Operating Humidity Range | 0 to 90% RH |
| Operating Temperature Range | 5 to 40ºC / 41 to 104ºF |
| Storage Temperature Range | -25 to 55ºC / -13 to 131ºF |
| Power Consumption | <100 W (printing); <24 W (ready); <0.3 W (<6.5 W with embedded Digital Front End) (sleep); 0.1 W (off) |
| Power | Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max |
| Software Included | HP Click App, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS, HP Click Driver for Windows 11 |
| Electromagnetic Compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Energy Star Certified | Yes |
| Environmental Certification | ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Silver |
| Safety | USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS) |
| Manufacturer Warranty | Two-year limited hardware warranty |
| What’s in the Box | HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindle, setup poster, introductory information, warranty, power cords, label kits |
