| Product |

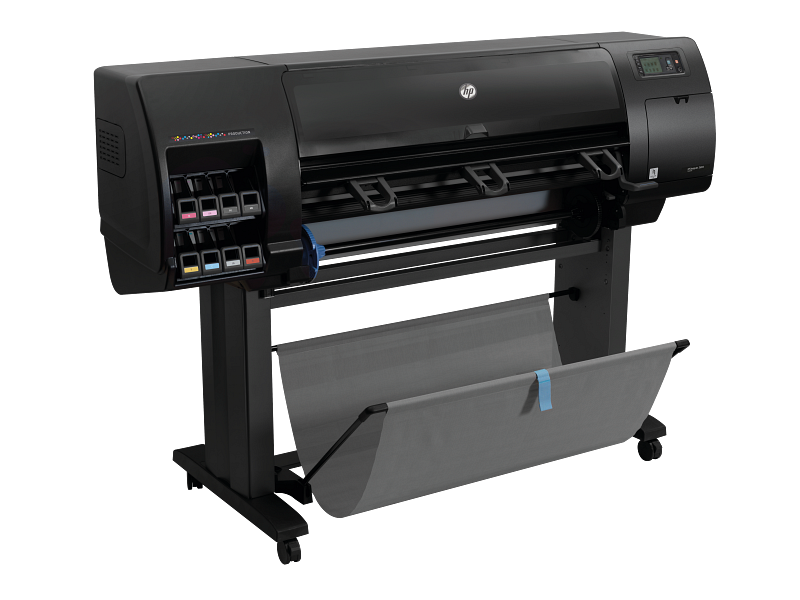

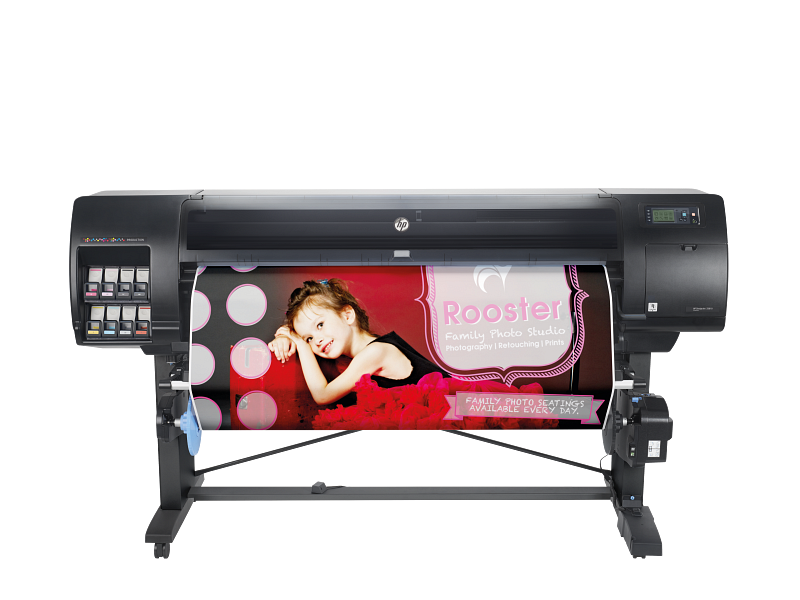

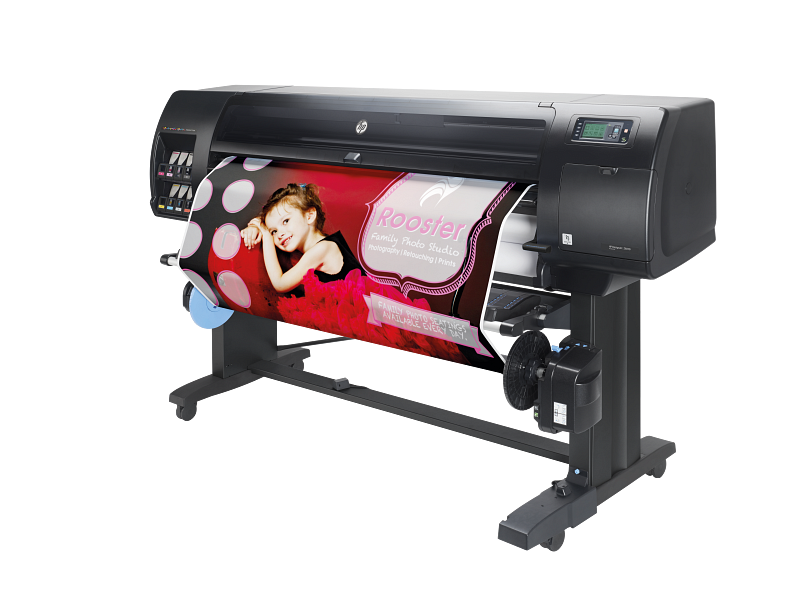

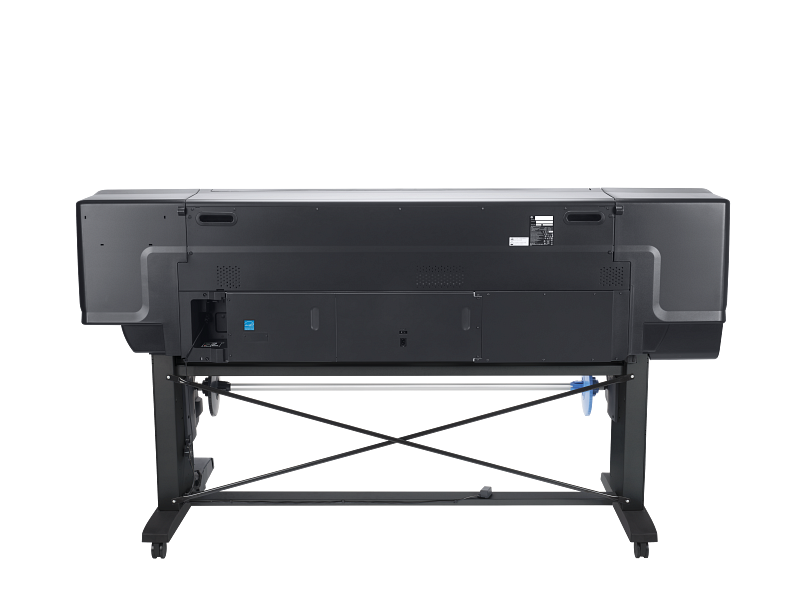

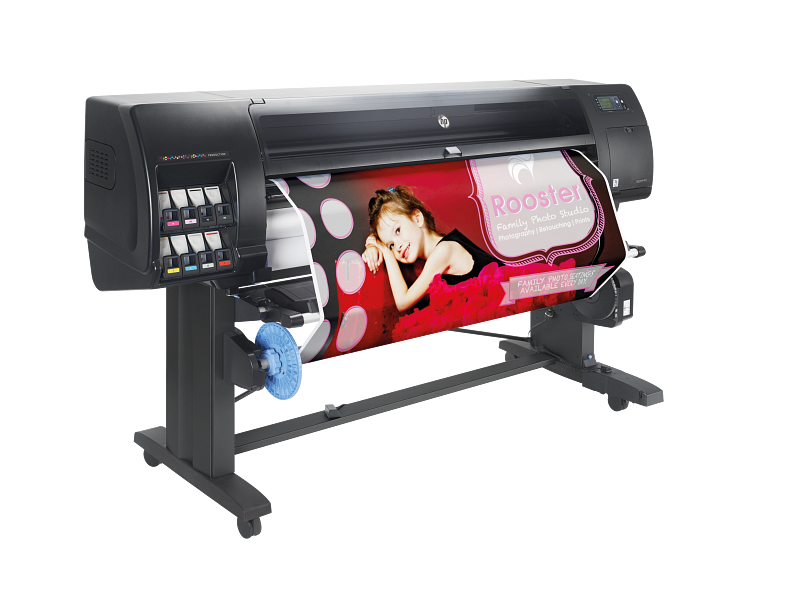

HP DesignJet Z6810 42-in Printer |
| Functions |
Print |
| Print Speed |
Fast: 113.6 m²/hr on plain media; Normal: 21.9 m²/hr on coated media; Best: 11 m²/hr on glossy media |
| Print Head Nozzles |
2112 per colour |
| Print Cartridge/Bottle Volume |
775 ml |
| Ink Types |
Pigment-based |
| Print Cartridges/Bottle, Number |
8 (cyan, magenta, yellow, matte black, photo black, chromatic red, light gray, light magenta) |
| Print Heads |
8 (2x matte black/chromatic red, 2x magenta/yellow, 2x light magenta/cyan, 2x photo black/light gray) |
| Print Cartridge/Bottle, Color(s) |
Cyan, magenta, yellow, matte black, photo black, chromatic red, light gray, light magenta |
| Print Quality Color (Best) |
Up to 2400 x 1200 optimised dpi |
| Maximum Optical Density (Black) |
4.5 L* min/2.31 D |
| Finished Output Handling |
Roll feed, automatic horizontal cutter, media bin, take-up reel (optional) |
| Media Sizes Standard (Metric Rolls) |
279 to 1067 mm |
| Roll External Diameter |
170 mm |
| Roll Maximum Input |
1 |
| Roll Maximum Weight |
18 kg |
| Recommended Media |
HP Everyday Matte Polypropylene; HP Artist Matte Canvas; HP Super Heavyweight Plus Matte Paper (FSC® certified) (Recyclable); HP Premium Instant-dry Satin Photo Paper (FSC® certified) (Recyclable); HP Premium Vivid Color Backlit Film |
| Media Thickness |
Up to 22 mil |
| Media Thickness Maximum (Metric) |
Up to 0.6 mm |
| Media Width, Maximum |
1067 mm |
| Supported Primary Applications |
Exhibition and event graphics; Graphics design; Indoor posters; Layouts and comps; Light boxes – paper; Line drawings; Maps; Office Graphics; Orthophotos; Photo maps; Point of sale/display; POP/POS; Posters; Presentations; Renderings; Schematics; Technical presentations |
| Non-Printable Area (Roll Media) |
5 x 5 x 5 x 5 mm |
| Media Types |
Bond and coated paper, technical paper, film, photographic paper, proofing paper, backlit, self-adhesive, banner and sign, fabric, fine art printing material |
| Media Weight, Recommended |
80 to 500 g/m² |
| Model Size |
1067 mm |
| Internal Storage |
500 GB |
| Line Accuracy |
±0.1% |
| Printer Drivers Included |
Raster driver for Windows; PostScript driver for Windows and macOS with optional PostScript/PDF Upgrade Kit |
| Print Languages |
HP-GL/2, HP-RTL, CALS G4 |
| Print Technology |
HP Thermal Inkjet |
| Theoretical Minimum Line Width |
0.02 mm (HP-GL/2 addressable) |
| Guaranteed Minimum Line Width |
0.067 mm (ISO/IEC 13660:2001(E)) |
| Color Accuracy |
Median < 1.25 dE2000, 95% of colors < 2.75 dE2000 |
| Color Stability |
< 1 dE2000 in less than 5 minutes |
| Optional Printer Languages |
Adobe PostScript 3; Adobe PDF 1.7; TIFF; JPEG |
| Print Repeatability |
Average < 0.5 dE2000, 95% of colors < 1.25 dE2000 |
| Connectivity, Standard |
Gigabit Ethernet (1000Base-T); EIO Jetdirect accessory slot |
| Connectivity, Optional |
HP Jetdirect EIO print servers |
| Network Ready |
Standard |
| Security Features |
SNMPv3, Control Panel lock levels, Certificates management, IPsec, SSL, Secure file erase, Secure disk erase |
| Dimensions (W x D x H) |
42-in: 1970 x 690 x 1370 mm (77.5 x 27.2 x 53.9 in); 60-in: 2430 x 690 x 1370 mm (95.7 x 27.2 x 53.9 in) |
| Package Dimensions (W x D x H) |
42-in: 2280 x 735 x 1200 mm (89.8 x 28.9 x 47.2 in); 60-in: 2684 x 750 x 1200 mm (105.6 x 29.5 x 47.2 in) |
| Weight |
42-in: 123 kg (271 lb); 60-in: 190 kg (419 lb) |
| Package Weight |
42-in: 177 kg (390.2 lb); 60-in: 222 kg (489.4 lb) |
| Memory |
64 GB file processing (based on 1 GB RAM) |
| Acoustic Power Emissions |
7.0 B(A) (operating), 5.5 B(A) (idle), 5.5 B(A) (sleep) |
| Acoustic Pressure Emissions |
53 dB(A) (operating), 39 dB(A) (idle), 39 dB(A) (sleep) |
| Operating Humidity Range |
20 to 80% RH |
| Operating Temperature Range |
5 to 40ºC / 41 to 104ºF |
| Storage Temperature Range |
-20 to 55ºC / -4 to 131ºF |
| Power Consumption |
270 W (printing); < 48 W (ready); < 5.3 W (sleep); < 0.3 W (off) |
| Power |
Input voltage (auto ranging): 100-127 V (±10%), 5 A; 220-240 V (±10%), 3 A; 50/60 Hz (±3 Hz) |
| Software Included |
Free: HP Applications Center, HP Click, printer drivers, HP DesignJet Utility including HP Color Center, HP Partner Link Pay-per-use, HP Web JetAdmin; Pay: HP SmartStream |
| Electromagnetic Compatibility |
Compliant with Class A requirements, including: EU (EMC Directive) |
| Energy Star Certified |
Yes |
| Environmental Certification |
ENERGY STAR; WEEE; RoHS (EU); REACH; EPEAT Bronze |
| Safety |
EU (LVD and EN 60950-1 compliant); Russia (GOST) |
| Manufacturer Warranty |
One-year limited hardware warranty |
| What’s in the Box |
HP DesignJet Z6810 42-in Production Printer, spindle, printheads, introductory ink cartridges, maintenance cartridge, printer stand, media bin, 3-in spindle adapter kit, quick reference guide, setup poster, startup software, power cord |
